The Am29PDL129H is a 128 Mbit, 3.0 volt-only Page Mode and Simultaneous Read/Write Flash memory device organized as 8 Mwords.
The device is offered in an 80-ball Finepitch BGA package, and various multi-chip packages.
The word-wide data (x16) appears on DQ15-DQ0.
This device can be programmed in-sys

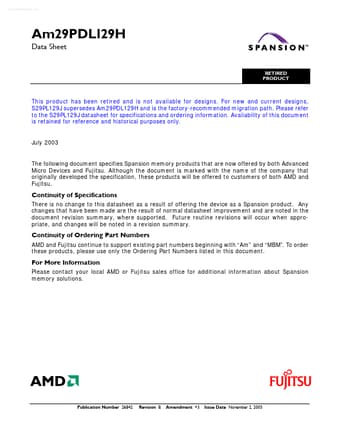

www.DataSheet4U.com Am29PDL129H Data Sheet RETIRED PRODUCT This product has been retired and is not available for designs.
For new and current designs, S29PL129J supersedes Am29PDL129H and is the factory-recommended migration path.
Please refer to the S29PL129J datasheet for specifications and ordering information.
Availability of this document is retained for reference and historical purposes only.
July 2003 The following document specifies Spansion memory products that are now offered by b
AM29PDL129H Features
* Software command-set compatible with JEDEC 42.4 standard
* Backward compatible with Am29F and Am29LV families
* Single power supply operation
* Full Voltage range: 2.7 to 3.6 volt read, erase, and program operations for battery-powered applications
* CFI (Common Flash
Datasheet Details
AM29PDL129H
AMD
875.23 KB
Page mode simultaneous read/write flash memory.
