AM29PDS322D Datasheet - AMD

AM29PDS322D - Simultaneous Read/Write Page-Mode Boot Sector Flash Memory

The Am29PDS322D is a 32 Mbit, 1.8 V-only Flash memory organized as 2,097,152 words of 16 bits each.

This device is offered in a 48-ball FBGA package.

The device is designed to be programmed in system with standard system 1.8 V V CC supply.

This device can also be reprogrammed in standard EPROM progr

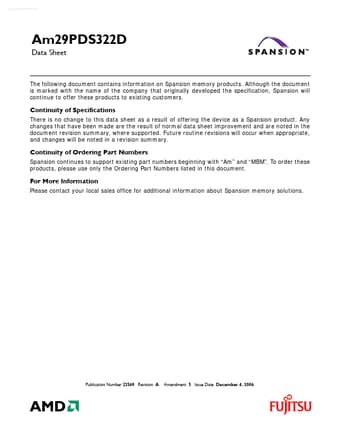

www.DataSheet4U.com Am29PDS322D Data Sheet The following document contains information on Spansion memory products.

Although the document is marked with the name of the company that originally developed the specification, Spansion will continue to offer these products to existing customers.

Continuity of Specifications There is no change to this data sheet as a result of offering the device as a Spansion product.

Any changes that have been made are the result of normal data sheet improvement

AM29PDS322D Features

* Data Management Software (DMS)

* AMD-supplied software manages data programming, enabling EEPROM emulation

* Eases historical sector erase flash limitations

* Erase Suspend/Erase Resume

* Suspends erase operations to allow programming in same bank

* Data# Pollin

AM29PDS322D_AMD.pdf

Preview of AM29PDS322D PDF
AM29PDS322D Datasheet Preview Page 2 AM29PDS322D Datasheet Preview Page 3

Datasheet Details

Part number:

AM29PDS322D

Manufacturer:

AMD

File Size:

870.49 KB

Description:

Simultaneous read/write page-mode boot sector flash memory.
