Am9130 Datasheet - AMD

Am9130 - 1024 x 4 Static R/W RAM

The Am9130 and Am91 L30 products are high performance, adaptive, low-power, 4k-bit, static, read/write random access memories.

They are implemented as 1024 words by 4 bits per word.

Only a single +5V power supply is required for normal operation.

A DC power-down mode reduces power while retaining da

Am9130 Am91l30 1024 x 4 Static R/W Random Access Memories DISTINCTIVE CHARACTERISTICS 1k x 4 organization Fully static data storage - no refreshing Single +5V power supply High-speed - access times down to 200ns max.

Low operating power - 578mW max., 9130 - 368mW max., 91 L30 Interface logic levels identical to TTL High noise immunity - 400mV worst-case High output drive - two standard TTL loads o DC power-dow

Am9130-AMD.pdf

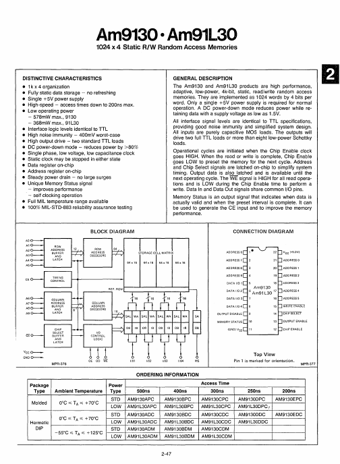

Preview of Am9130 PDF
Am9130 Datasheet Preview Page 2 Am9130 Datasheet Preview Page 3

Datasheet Details

Part number:

Am9130

Manufacturer:

AMD

File Size:

455.56 KB

Description:

1024 x 4 static r/w ram.
