Am9232 Datasheet - AMD

Am9232-AMD.pdf

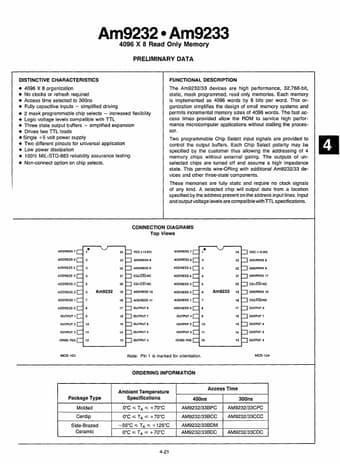

Preview of Am9232 PDF
Am9232 Datasheet Preview Page 2 Am9232 Datasheet Preview Page 3

Datasheet Details

Part number:

Am9232

Manufacturer:

AMD

File Size:

150.24 KB

Description:

Rom.

Am9232, ROM

The Am9232/33 devices are high performance, 32,768-bit, static, mask programmed, read only memories.

Each memory is implemented as 4096 words by 8 bits per word.

This organization simplifies the design of small memory systems and permits incremental memory sizes of 4096 words.

The fast access times

Am9232 Am9233 4096 X 8 Read Only Memory PRELIMINARY DATA DISTINCTIVE CHARACTERISTICS 4096 X 8 organization No clocks or refresh required Access time selected to 300ns Fully capacitive inputs - simplified driving 2 mask programmable chip selects - increased flexibility Logic voltage levels compatible with TTL Three state output buffers - simplified expansion Drives two TTL loads Single +5 volt pow
