N a t io n a l C o n t r o ls C o r p.
Phone 800-323-2593 Fax 630-231-1377 Internet www.natcon.com www.nationalcontrols.com
630-231-5900

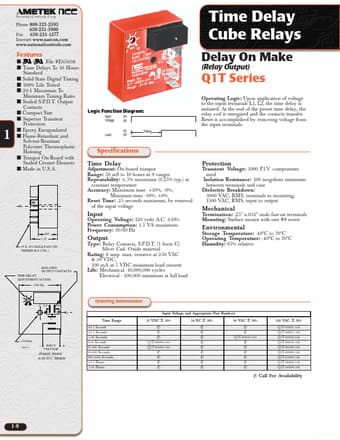

Time Delay Cube Relays
Delay On Make
(Relay Output)
Features
R
1
File #E65038 Time Delays To 10 Hours Standard Solid-State Digital Timing 100% Life Tested 20:1 Maximum To Minimum Timing Ratio Sealed S.P.D.T. Output Contacts Compact Size Superior Transient Protection Epoxy Encapsulated Flame-Retardant and Solvent-Resistant Polyester Thermoplastic Housing Trimpot On-Board with Sealed Cermet Element Made in U.S.A.
C
R
Q1T Series
Logic Function Diagram:
Input Voltage On Off On Off Timing
Operating Logic: Upon application of voltage to the input terminals L1, L2, the time delay is initiated.
Q1T-03600-341 Datasheet
