AN82 General Description

AN8x is a family of AND-NOR circuits consisting of two 2-input AND gates into a 3-input NOR gate. Logic Symbol Truth Table A AN8x ABCDEQ B HHXXX L C Q XXHHX L D XXXXHL All other combinations H E HDL Syntax Verilog AN8x inst_name (Q, A, B, C, D, E); VHDL inst_name: AN8x port map (Q, A, B,.

AN82 Datasheet (24.79 KB)

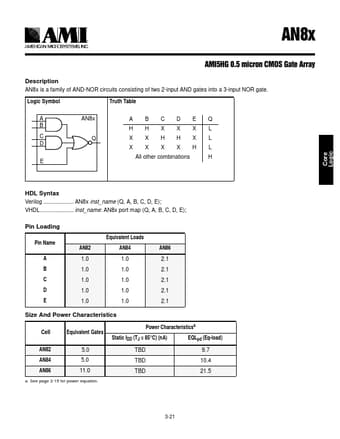

Preview of AN82 PDF

Datasheet Details

Part number:

AN82

Manufacturer:

AMI

File Size:

24.79 KB

Description:

Cmos gate array.
