AN8245K Datasheet - Panasonic

AN8245K, Laser Disk Spindle Motor Controller

ICs for Motor AN8245K, AN8245SCR Laser Disk Spindle Motor Controller s Overview The AN8245K and AN8245SCR are speed control drive ICs of the brushle.

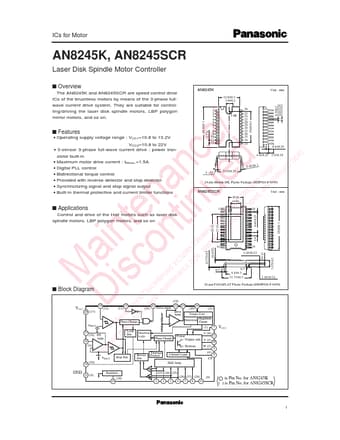

datasheet Preview Page 1 from Datasheet4u.com

AN8245K_Matsushita.pdf

AN8245K Datasheet Preview — Preview of AN8245K PDF

Datasheet Details

Part number:

AN8245K

Manufacturer:

Panasonic

File Size:

391.24 KB

Description:

Laser Disk Spindle Motor Controller

Features

* Operating supply voltage range : VCC1=10.8 to 13.2V VCC2=10.8 to 22V
* 3-sensor 3-phase full-wave current drive ; power transistor built-in
* Maximum motor drive current : IMmax. =1.5A
* Digital PLL control
* Bidirectional torque control
* Provided wi

Applications

* Control and drive of the Hall motors such as laser disk spindle motors, LBP polygon motors, and so on 24.0±0.3/ 1.778 19.0±0.3 0.5±0.1 0.9±0.25 AN8245K 1 2 3 4 5 6 7 8 9 10 11 12 12.0±0.3 3.6±0.2 1.8R 24 23 22 21 20 19 18 17 1
