AN8267S

Fan Motor Driver

Panasonic Semiconductor

AN8267S Features

* Operating supply voltage range ; VCC=9.6 to 27.6V

* (Operable at VCC=6V to 9.6V as well) 2-phase half-wave drive, built-in power transistor Built-in lock protective function and automatic reset function Built-in thermal protective circuit (operating te

AN8267S General Description

Pin No. 1 2 3 4 5 6 7 8 Symbol IN (

*) RD1 RD2 C TSD OUT1 B1 Hall input (

*) Rotation display 1 (pulse output) Rotation display 2 (H/L output) Lock protection automatic reset Thermal shutdown Motor coil output 1 Output base 1 Pin name Pin No. 9 10 11 12 13 14 15 16 Symbol B2 OUT2 VM V.

AN8267S Datasheet (53.23 KB)

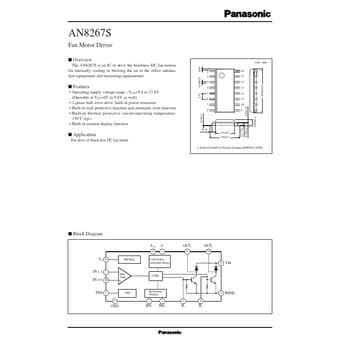

AN8267S Datasheet Preview — Preview of AN8267S PDF

Datasheet Details

Part number:

AN8267S

Manufacturer:

Panasonic Semiconductor

File Size:

53.23 KB

Description:

Fan motor driver.
AN8267S Fan Motor Driver s Overview The AN8267S is an IC to drive the brushless DC fan motors for internally cooling or blowing the air to the office .
