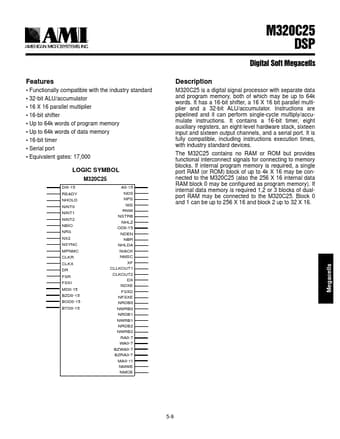

M320C25 - digital signal processor

Name: M320C25
SKU: M320C25-1248487

AMI

Datasheet Details

M320C25 is a digital signal processor with separate data and program memory, both of which may be up to 64k words.

Functionally compatible with the industry standard.
32-bit ALU/accumulator.
16 X 16 parallel multiplier.
16-bit shifter.
Up to 64k words of program memory.
Up to 64k words of data memory.
16-bit timer.
Serial port.
Equivalent gates: 17,000 LOGIC SYMBOL M320C25 DI0-15 READY NHOLD NINT0 NINT1 NINT2 NBIO NRS NX2 NSYNC MPNMC CLKR CLKX DR FSR FSXI MD0-15 BZD0-15 BOD0-15 BTD0-15 A0-15 NDS NPS NIS RNW NSTRB NHLZ OD0-1.
