M32000D3FP Datasheet - Mitsubishi

SINGLE-CHIP 32-BIT CMOS MICROCOMPUTER

M32000D3FP Features

* CPU M32R family CPU core

* Pipeline 5 steps

* Basic bus cycle 15 ns (at internal 66.6 MHz)

* Logical address space 4G-byte linear

* External bus data bus: 16 bits address bus: 24 bits

* Internal DRAM 8M bits (1M bytes)

* Cache 4K by

M32000D3FP General Description

The M32000D3FP is a new generation microcomputer with a 32-bit CPU and built-in high capacity DRAM. Using this device it is possible to implement the complex applications of the multimedia age with high performance and low power consumption. The M32000D3FP contains 1M bytes of DRAM and 4K bytes of c.

M32000D3FP Datasheet (550.15 KB)

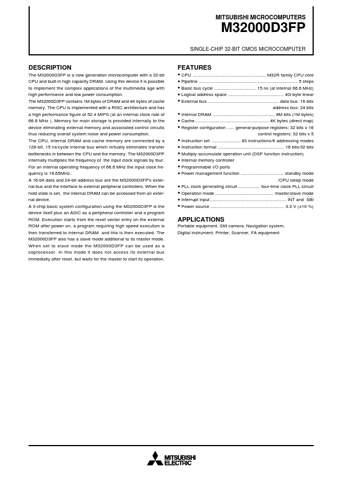

M32000D3FP Datasheet Preview — Preview of M32000D3FP PDF

Datasheet Details

Part number:

M32000D3FP

Manufacturer:

Mitsubishi

File Size:

550.15 KB

Description:

Single-chip 32-bit cmos microcomputer.
