M32000D4BFP-80 - SINGLE-CHIP 32-BIT CMOS MICROCOMPUTER

Mitsubishi

Datasheet Details

Part number	M32000D4BFP-80
Manufacturer	Mitsubishi
File Size	435.27 KB
Description	SINGLE-CHIP 32-BIT CMOS MICROCOMPUTER
Datasheet	M32000D4BFP-80_MitsubishiElectricSemiconductor.pdf

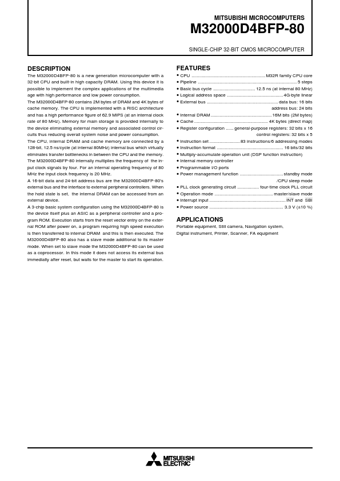

The M32000D4BFP-80 is a new generation microcomputer with a 32-bit CPU and built-in high capacity DRAM.

CPU M32R family CPU core.
Pipeline 5 steps.
Basic bus cycle 12.5 ns (at internal 80 MHz).
Logical address space 4G-byte linear.
External bus data bus: 16 bits address bus: 24 bits.
Internal DRAM 16M bits (2M bytes).
Cache 4K bytes (direct map).
Register configuration general-purpose registers: 32 bits x 16 control registers: 32 bits x 5.
Instruction set 83 instructions/6 addressing modes.
Ins.
