NA82, NA81 Datasheet - AMI

NA82 - CMOS Gate Array

NA8x is a family of 8-input gates which perform the logical NAND function.

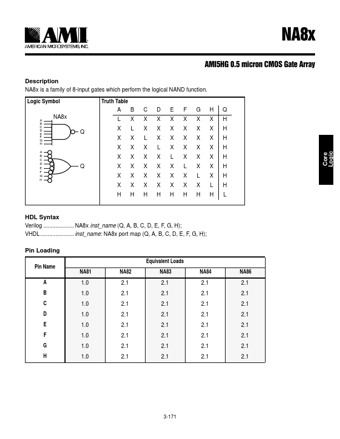

Logic Symbol NA8x A B C D E F G H A B C D E F G H Q Q Truth Table ABCDE FGH LXXXXXXX XLXXXXXX XXLXXXXX XXXLXXXX XXXXLXXX XXXXXLXX XXXXXXLX XXXXXXXL HHHHHHHH Q H H H H H H H H L HDL Syntax Verilog NA8x inst_name (Q, A, B
