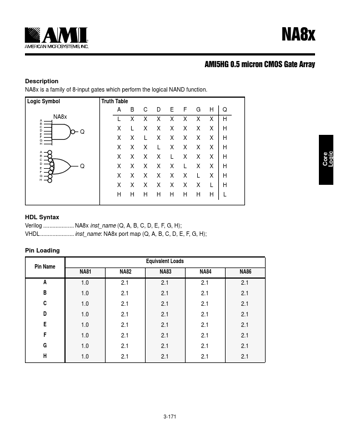

NA8x is a family of 8-input gates which perform the logical NAND function.
Logic Symbol NA8x A B C D E F G H A B C D E F G H Q Q Truth Table ABCDE FGH LXXXXXXX XLXXXXXX XXLXXXXX XXXLXXXX XXXXLXXX XXXXXLXX XXXXXXLX XXXXXXXL HHHHHHHH Q H H H H H H H H L HDL Syntax Verilog NA8x inst_name (Q, A, B
Datasheet Details
NA84, NA81
AMI
28.68 KB
Cmos gate array.
This datasheet PDF includes multiple part numbers: NA84, NA81.
Please refer to the document for exact specifications by model.
