ODTSXX08 - CMOS Gate Array

ODTSXXxx is a family of 4 to 24 mA, non-inverting, TTL-level, output buffer pieces with controlled slew rate outputs.

Logic Symbol Truth Table ODTSXXxx A SL PADM A PADM LL HH HDL Syntax Verilog ODTSXXxx inst_name (PADM, A); VHDL inst_name: ODTSXXxx port map (PADM, A); Pin Loading Pin Name A

ODTSXX04-AMI.pdf

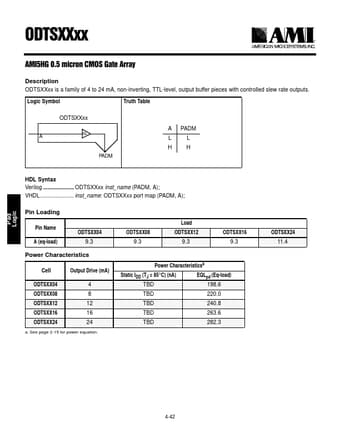

ODTSXX08 Datasheet Preview — This datasheet PDF includes multiple part numbers: ODTSXX08, ODTSXX04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ODTSXX08, ODTSXX04

Manufacturer:

AMI

File Size:

23.70 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: ODTSXX08, ODTSXX04.
Please refer to the document for exact specifications by model.
