A62S6316, A62S Datasheet - AMIC Technology

A62S6316 64K X 16 BIT LOW VOLTAGE CMOS SRAM

The A62S6316 is a low operating current 1,048,576-bit static random access memory organized as 65,536 words by 16 bits and operates on low power supply voltage from 2.7V to 3.3V. It is built using AMIC’s high performance CMOS process. Inputs and three-state outputs are TTL compatible and allow for d.

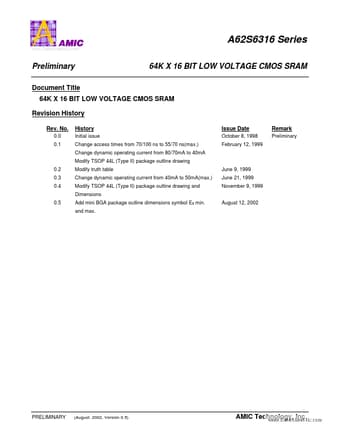

A62S6316 Series www.DataSheet4U.com Preliminary Document Title 64K X 16 BIT LOW VOLTAGE CMOS SRAM 64K X 16 BIT LOW VOLTAGE CMOS SRAM Revision History Rev. No. 0.0 0.1 History Initial issue Change access times from 70/100 ns to 55/70 ns(max.) Change dynamic operating current from 80/70mA to 40mA Modify TSOP 44L (Type II) package outline drawing Issue Date October 8, 1998 February 12, 1999 Remark Preliminary 0.2 0.3 0.4 0.5 Modify truth table Change dynamic operating current from 40mA to 5.

A62S6316 Features

* n Operating voltage: 2.7V to 3.3V n Access times: 55/70 ns (max.) n Current: A62S6316-S series: Operating: Standby: A62S6316-SI series: Operating: Standby: 64K X 16 BIT LOW VOLTAGE CMOS SRAM 50mA (max.) 15µA (max.) 50mA (max.) 30µA (max.) n Extended operating temperature range : -25°C to 85°C for

A62S-6316.pdf

This datasheet PDF includes multiple part numbers: A62S6316, A62S. Please refer to the document for exact specifications by model.
A62S6316 Datasheet Preview Page 2 A62S6316 Datasheet Preview Page 3

Datasheet Details

Part number:

A62S6316, A62S

Manufacturer:

AMIC Technology

File Size:

193.22 KB

Description:

64k x 16 bit low voltage cmos sram.

Note:

This datasheet PDF includes multiple part numbers: A62S6316, A62S.
Please refer to the document for exact specifications by model.
