A62S8316 - 256K X 16 BIT LOW VOLTAGE CMOS SRAM

AMIC Technology

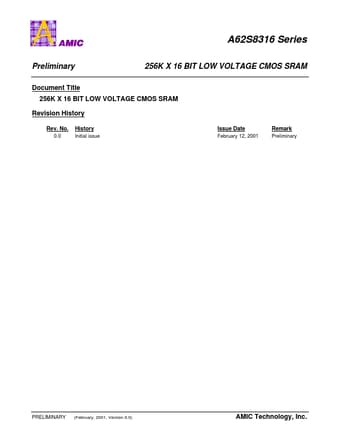

A62S8316 Datasheet Preview — Preview of A62S8316 PDF

Datasheet Details

Part number	A62S8316
Manufacturer	AMIC Technology
File Size	142.63 KB
Description	256K X 16 BIT LOW VOLTAGE CMOS SRAM
Datasheet	A62S8316_AMICTechnology.pdf

A62S8316 Product details

Description

The A62S8316 is a low operating current 4,194,304-bit static random access memory organized as 262,144 words by 16 bits and operates on low power supply voltage from 2.7V to 3.6V.

Features

n Operating voltage: 2.7V to 3.6V n Access times: 70 ns (max. ) n Current: A62S8316-S series: Operating: Standby: A62S8316-SI series: Operating: Standby: n Extended operating temperature range : -25°C to 85°C for -SI series n Full static operation, no clock or refreshing required n All inputs and outputs are directly TTL-compatible n Common I/O using three-state output n Data retention voltage: 2V (min. ) n Available in 44-pin TSOP and 48-ball Mini BGA (6X8) packages. 256K X 16 BIT LOW.
