A64E16161 - 2M X 16 Bit Low Voltage Super RAM

Datasheet Summary

Description

The A64E16161 is a low operating current 33,554,432-bit Super RAM organized as 2,097,152 words by 16 bits and operates on low power supply voltage from 1.65V to 2.2V.

Features

n Operating voltage: 1.65V to 2.2V n Access times: Address Access , tAA = 70 ns (max. ) Page Mode Address Access, tPAA = 25ns (max) n Current: Operating Current (Icc2) : 20mA (max. ) Standby Current (Isb1) : 60uA (max) Power Down Standby Current (Isb2) : 10µA (max. ) n Fully SRAM compatible operation n Full static operation, no clock or refreshing required n All inputs and outputs are directly TTL-compatible n Common I/O using three-state output n Support 3 distinct operation modes for reducing sta.

AMIC Technology

📥 Download Datasheet

Datasheet Details

Part number	A64E16161
Manufacturer	AMIC Technology
File Size	55.79 KB
Description	2M X 16 Bit Low Voltage Super RAM
Datasheet	A64E16161 Datasheet

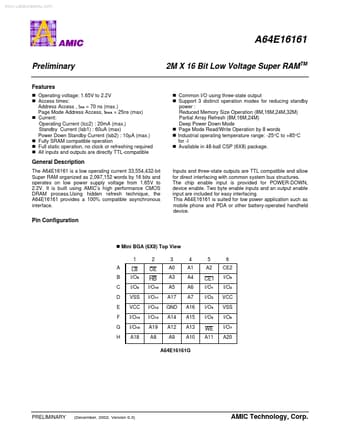

Additional preview pages of the A64E16161 datasheet.

📁 Similar Datasheet

A64 - 10 TO 1200 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
A64 - Mobile Application Processor (Allwinner)
A640 - PNP Silicon Epitaxial Transistor (ETC)
A6402 - Universal Asynchronous Receiver/Transmitter (Altera Corporation)
A641 - 2SA641 (ETC)
A642 - 2SA642 (USHA)

Other Datasheets by AMIC Technology

A64E06161 - 1M X 16 Bit Low Voltage Super RAM
A64S0616 - 1M X 16 Bit Low Voltage Super RAM
A64S16161 - 2M X 16 Bit Low Voltage Super RAM
A64S9316 - 512K X 16 Bit Low Voltage Super RAM

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com A64E16161 Preliminary Features n Operating voltage: 1.65V to 2.2V n Access times: Address Access , tAA = 70 ns (max.) Page Mode Address Access, tPAA = 25ns (max) n Current: Operating Current (Icc2) : 20mA (max.) Standby Current (Isb1) : 60uA (max) Power Down Standby Current (Isb2) : 10µA (max.
