A64E06161 - 1M X 16 Bit Low Voltage Super RAM

Datasheet Summary

Description

The A64E06161 is a low operating current 16,777,216-bit super RAM organized as 1,048,576 word by 16bit and operated on low power supply voltage from 1.7V to 1.95V.

It is built using AMIC’s high performance CMOS DRAM process.

Features

  • Operating voltage: VCC: 1.7V to 1.95V VCCQ: 1.7V to VCC Access times: tAA = 70ns (max. ) Page Access times: tPAA = 25ns (max) Current: A64E06161 series: Operating Current (Icc1) : 15mA (max. ) Standby Current (Isb1) : 100uA (max) Deep Power Down Standby Current (IZZ) : 10µA (max. ) 4-word page length Support 4 distinct operation modes for reducing standby power : Deep Power Down (DPD) mode Reduce Memory Size (RMS) mode (4M, 8M, 12M) Partial Array Refresh (PAR) mode (4M,8M,12M) Temperature Compensat.

📥 Download Datasheet

Datasheet preview – A64E06161

Datasheet Details

Part number A64E06161
Manufacturer AMIC Technology
File Size 331.51 KB
Description 1M X 16 Bit Low Voltage Super RAM
Datasheet download datasheet A64E06161 Datasheet
Additional preview pages of the A64E06161 datasheet.

📁 Similar Datasheet

  • A64 - 10 TO 1200 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • A64 - Mobile Application Processor (Allwinner)
  • A640 - PNP Silicon Epitaxial Transistor (ETC)
  • A6402 - Universal Asynchronous Receiver/Transmitter (Altera Corporation)
  • A641 - 2SA641 (ETC)
  • A642 - 2SA642 (USHA)
Other Datasheets by AMIC Technology
  • A64E16161 - 2M X 16 Bit Low Voltage Super RAM
  • A64S0616 - 1M X 16 Bit Low Voltage Super RAM
  • A64S16161 - 2M X 16 Bit Low Voltage Super RAM
  • A64S9316 - 512K X 16 Bit Low Voltage Super RAM

Full PDF Text Transcription

Click to expand full text

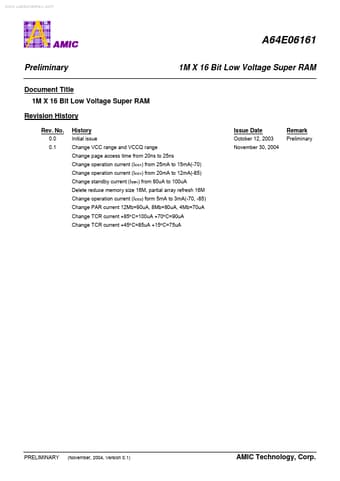

www.DataSheet4U.com A64E06161 Preliminary Document Title 1M X 16 Bit Low Voltage Super RAM Revision History Rev. No. 0.0 0.1 1M X 16 Bit Low Voltage Super RAM History Initial issue Change VCC range and VCCQ range Change page access time from 20ns to 25ns Change operation current (ICC1) from 25mA to 15mA(-70) Change operation current (ICC1) from 20mA to 12mA(-85) Change standby current (ISB1) from 80uA to 100uA Delete reduce memory size 16M, partial array refresh 16M Change operation current (ICC2) form 5mA to 3mA(-70, -85) Change PAR current 12Mb=90uA, 8Mb=80uA, 4Mb=70uA Change TCR current +85°C=100uA +70°C=90uA Change TCR current +45°C=85uA +15°C=75uA Issue Date October 12, 2003 November 30, 2004 Remark Preliminary PRELIMINARY (November, 2004, Version 0.1) AMIC Technology, Corp.
