A64S0616 - 1M X 16 Bit Low Voltage Super RAM

Datasheet Summary

Description

The A64S0616 is a low operating current 16,777,216-bit Super RAM organized as 1,048,576 words by 16 bits and operates on low power supply voltage from 2.7V to 3.1V.

It is built using AMIC’s high performance CMOS DRAM process.

Features

  • n Operating voltage: 2.7V to 3.1V n Access times: 70 ns (max. ) n Current: A64S0616 series: Operating: 35mA (max. ) Power Down Standby: 10µA (max. ) n Fully SRAM compatible operation n Full static operation, no clock or refreshing required n All inputs and outputs are directly TTL-compatible n Common I/O using three-state output n Industrial operating temperature range: -25°C to +85°C for -I n Available in 48-ball Mini BGA (6X8) package. 1M X 16 Bit Low Voltage Super RAMTM General.

📥 Download Datasheet

Datasheet preview – A64S0616

Datasheet Details

Part number A64S0616
Manufacturer AMIC Technology
File Size 171.58 KB
Description 1M X 16 Bit Low Voltage Super RAM
Datasheet download datasheet A64S0616 Datasheet
Additional preview pages of the A64S0616 datasheet.

📁 Similar Datasheet

  • A64 - 10 TO 1200 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • A64 - Mobile Application Processor (Allwinner)
  • A640 - PNP Silicon Epitaxial Transistor (ETC)
  • A6402 - Universal Asynchronous Receiver/Transmitter (Altera Corporation)
  • A641 - 2SA641 (ETC)
  • A642 - 2SA642 (USHA)
Other Datasheets by AMIC Technology
  • A64S16161 - 2M X 16 Bit Low Voltage Super RAM
  • A64S9316 - 512K X 16 Bit Low Voltage Super RAM
  • A64E06161 - 1M X 16 Bit Low Voltage Super RAM
  • A64E16161 - 2M X 16 Bit Low Voltage Super RAM

Full PDF Text Transcription

Click to expand full text

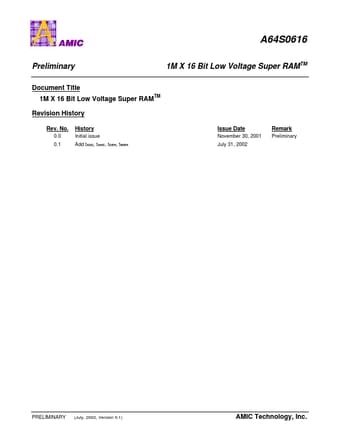

A64S0616 Preliminary Document Title 1M X 16 Bit Low Voltage Super RAMTM Revision History Rev. No. 0.0 0.1 1M X 16 Bit Low Voltage Super RAMTM History Initial issue Add tASC, tAHC, tCEH, tWEH Issue Date November 30, 2001 July 31, 2002 Remark Preliminary PRELIMINARY (July, 2002, Version 0.1) AMIC Technology, Inc. A64S0616 Preliminary Features n Operating voltage: 2.7V to 3.1V n Access times: 70 ns (max.) n Current: A64S0616 series: Operating: 35mA (max.) Power Down Standby: 10µA (max.) n Fully SRAM compatible operation n Full static operation, no clock or refreshing required n All inputs and outputs are directly TTL-compatible n Common I/O using three-state output n Industrial operating temperature range: -25°C to +85°C for -I n Available in 48-ball Mini BGA (6X8) package.
