A29800B

Boot Sector Flash Memory

A29800B Features

* Single power supply operation - Full voltage range: 4.5 to 5.5 volt for read and write operations

* Access time: - 55ns (max.)

* Current: - 20 mA typical active read current - 30 mA typical program/erase current - 6μA typical CMOS standby

* Flexible sector architect

A29800B General Description

The A29800B is an 8Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes of 8 bits or 524,288 words of 16 bits each. The 8 bits of data appear on I/O0 - I/O7; the 16 bits of data appear on I/O0~I/O15. The is offered in 48-ball FBGA and 48-Pin TSOP packages. This device is designed to be prog.

A29800B Datasheet (478.57 KB)

Preview of A29800B PDF

Datasheet Details

Part number:

A29800B

Manufacturer:

AMIC

File Size:

478.57 KB

Description:

Boot sector flash memory.

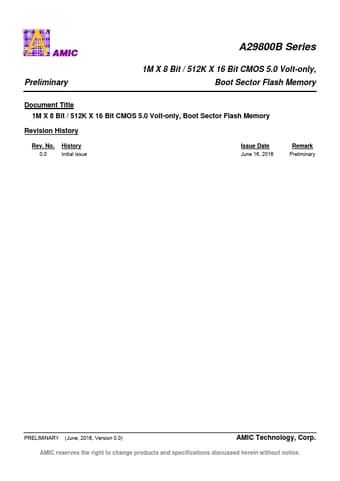

A29800B Series Preliminary 1M X 8 Bit / 512K X 16 Bit CMOS 5.0 Volt-only, Boot Sector Flash Memory Document Title 1M X 8 Bit / 512K X 16 Bit CMOS 5.
