A2982 - 8-CHANNEL SOURCE DRIVERS

A2982 Description

.
Recommended for high-side switching applications that benefit from separate logic and load grounds, these devices encompass load supply voltages to 50.

A2982 Features

* ▪ TTL, DTL, PMOS, or CMOS compatible inputs ▪ 500 mA output source current capability ▪ Transient-protected outputs ▪ Output breakdown voltage to 50 V ▪ DIP or SOIC packaging Package: 20-pin SOICW (suffix LW) Not to scale (drop-in replacement for discontinued 18-pin SOIC variants) A2982 8-Channel S

A2982 Applications

* that benefit from separate logic and load grounds, these devices encompass load supply voltages to 50 V and output currents to -500 mA. These 8-channel source drivers are useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper an

📥 Download Datasheet

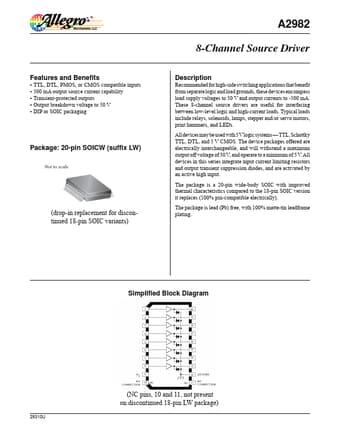

Preview of A2982 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A2982
Manufacturer
Allegro MicroSystems
File Size
505.77 KB
Datasheet
A2982_AllegroMicroSystems.pdf
Description
8-CHANNEL SOURCE DRIVERS
