A2987

Eight-channel Source Driver With Over-current Protection

A2987 Features

* s s s s s s s 350 mA Output Source Current Over-Current Protected Internal Ground Clamp Diodes Output Breakdown Voltage 35 V, Minimum TTL, DTL, PMOS, or CMOS Compatible Inputs Internal Thermal Shutdown Automotive Capable Always order by complete part number: Part Number UDN2987A UDN2987LW Package 2

A2987 General Description

As with all power integrated circuits, the UDN2987A and UDN2987LW have a maximum allowable output current rating. The 500 mA rating does not imply that operation at that value is permitted or even obtainable. The channel output current trip point is specified as -370 mA, minimum; therefore, attempte.

A2987 Datasheet (117.38 KB)

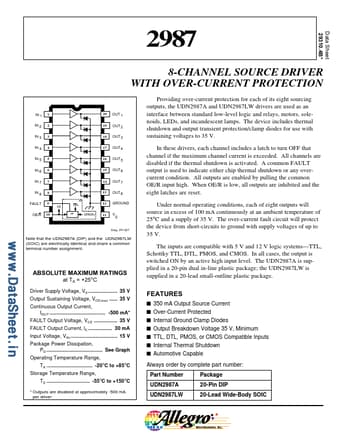

Preview of A2987 PDF

Datasheet Details

Part number:

A2987

Manufacturer:

Allegro Micro Systems

File Size:

117.38 KB

Description:

Eight-channel source driver with over-current protection.
2987 Providing over-current protection for each of its eight sourcing outputs, the UDN2987A and UDN2987LW drivers are used as an interface between sta.
