DL82 - CUB - 0.6 um CMOS

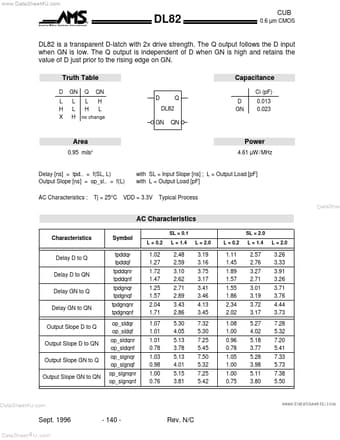

www.DataSheet4U.com R Austria Mikro Systeme International DL82 CUB 0.6 µm CMOS DL82 is a transparent D-latch with 2x drive strength.
The Q output follows the D input when GN is low.
The Q output is independent of D when GN is high and retains the value of D just prior to the rising edge on GN.
Truth Table D L H X GN L L H Q L H QN H L Capacitance Ci (pF) D DL82 Q D GN 0.013 0.023 no change GN QN Area 0.95 mils2 Power 4.61 µW / MHz Delay [ns] = tpd..
= f(SL, L) Output Slope [ns] =
