DL8032-001 Datasheet - Sanyo Electric

DL8032-001 Laser Diode

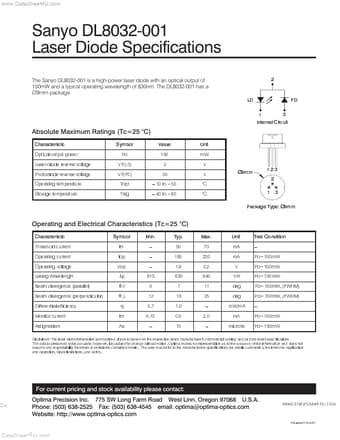

www.DataSheet4U.com Sanyo DL8032-001 Laser Diode Specifications The Sanyo DL8032-001 is a high-power laser diode with an optical output of 150mW and a typical operating wavelength of 830nm. The DL8032-001 has a ∅9mm package. LD 2 PD 1 3 Internal Circuit Absolute Maximum Ratings (Tc=25 °C) Characteristic Symbol Value Unit Optical output power Laser diode reverse voltage Photodiode reverse voltage Operating temperature Storage temperature Po V R(LD) V R(PD) Topr Tstg 150 2 30 – 10 to +50 –.

DL8032-001_SanyoElectric.pdf

Preview of DL8032-001 PDF

Datasheet Details

Part number:

DL8032-001

Manufacturer:

Sanyo Electric

File Size:

229.72 KB

Description:

Laser diode.
