DL800 FAST RECOVERY HIGH VOLTAGE 25mA MINIATURE SILICON RECTIFIERS

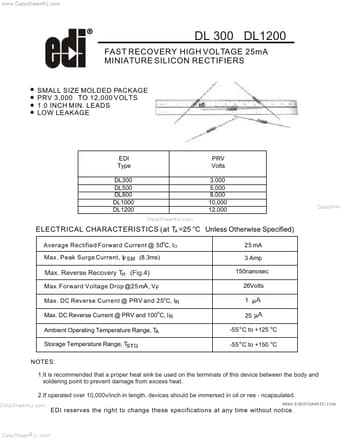

www.DataSheet4U.com DL 300 DL1200 FAST RECOVERY HIGH VOLTAGE 25mA MINIATURE SILICON RECTIFIERS SMALL SIZE MOLDED PACKAGE PRV 3,000 TO 12,000 VOLTS 1.0 INCH MIN. LEADS LOW LEAKAGE EDI Type DL300 DL500 DL800 DL1000 DL1200 DataSheet4U.com PRV Volts 3,000 5,000 8,000 10,000 12,000 DataShee ELECTRICAL CHARACTERISTICS (at TA =25 o C Unless Otherwise Specified) Average Rectified Forward Current @ 50 C, IO Max. Peak Surge Current, IFSM (8.3ms) o 25 mA 3 Amp Max. Reverse Recovery Trr (Fig.4) Max..
