A11560 Bandpass SAW Filter

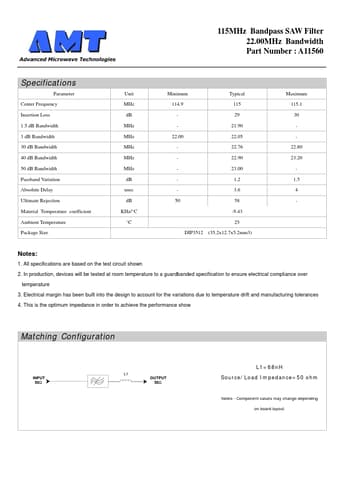

115MHz Bandpass SAW Filter 22.00MHz Bandwidth Part Number : A11560 Specifications Parameter Center Frequency Insertion Loss 1.5 dB Bandwidth 3 dB Bandwidth 30 dB Bandwidth 40 dB Bandwidth 50 dB Bandwidth Passband Variation Absolute Delay Ultimate Rejection Material Temperature coefficient Ambient Temperature Package Size Unit MHz dB MHz MHz MHz MHz MHz dB usec dB KHz/°C °C Minimum Typical 114.9 115 - 29 - 21.90 22.00 22.05 - 22.76 - 22.90 - 23.00 - 1.2 - 3.6 50 58 -9.43 25 DIP.

A11560 Datasheet (167.45 KB)

Preview of A11560 PDF
A11560 Datasheet Preview Page 2 A11560 Datasheet Preview Page 3

Datasheet Details

Part number:

A11560

Manufacturer:

AMT

File Size:

167.45 KB

Description:

Bandpass saw filter.
