A1153-F, A1152-F, Chopper-Stabilized Two-Wire Hall-Effect Switches

A1152-F, A1153-F, A1155-F, and A1156-F Chopper-Stabilized Two-Wire Hall-Effect Switches .
The A1152-F, A1153-F, A1155-F, and A1156-F comprise a family of two-wire, unipolar, Hall-effect switches, which are factory-trimmed to optimize magnet.

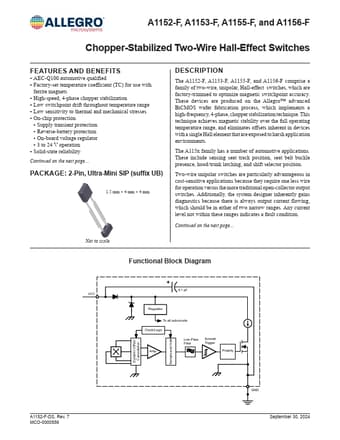

datasheet Preview Page 1 from Datasheet4u.com

A1152-F-Allegro.pdf

A1153-F Datasheet Preview — This datasheet PDF includes multiple part numbers: A1153-F, A1152-F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

A1153-F, A1152-F

Manufacturer:

Allegro

File Size:

810.65 KB

Description:

Chopper-Stabilized Two-Wire Hall-Effect Switches

Note:

This datasheet PDF includes multiple part numbers: A1153-F, A1152-F.
Please refer to the document for exact specifications by model.

Features

* ▪ AEC-Q100 automotive qualified ▪ Factory-set temperature coefficient (TC) for use with ferrite magnets ▪ High-speed, 4-phase chopper stabilization ▪ Low switchpoint drift throughout temperature range ▪ Low sensitivity to thermal and mechanical stresses ▪ On-chip protection ▫ Supply transient protec

Applications

* These include sensing seat track position, seat belt buckle presence, hood/trunk latching, and shift selector position. Two-wire unipolar switches are particularly advantageous in cost-sensitive applications because they require one less wire for operation versus the more traditional open-collector
