A1155-F

Chopper-Stabilized Two-Wire Hall-Effect Switches

A1155-F Datasheet (810.65 KB)

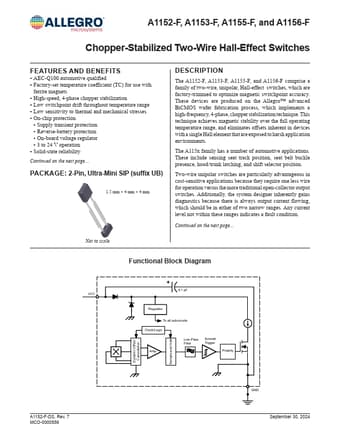

Preview of A1155-F PDF Datasheet

Datasheet Details

Part number:

A1155-F

Manufacturer:

Allegro

File Size:

810.65 KB

Description:

Chopper-stabilized two-wire hall-effect switches

A1155-F Features

* ▪ AEC-Q100 automotive qualified ▪ Factory-set temperature coefficient (TC) for use with ferrite magnets ▪ High-speed, 4-phase chopper stabilization ▪ Low switchpoint drift throughout temperature range ▪ Low sensitivity to thermal and mechanical stresses ▪ On-chip protection ▫ Supply transient protec

A1155-F General Description

The A1152-F, A1153-F, A1155-F, and A1156-F comprise a family of two-wire, unipolar, Hall-effect switches, which are factory-trimmed to optimize magnetic switchpoint accuracy. These devices are produced on the Allegro™ advanced BiCMOS wafer fabrication process, which implements a high-frequency, 4-ph.
