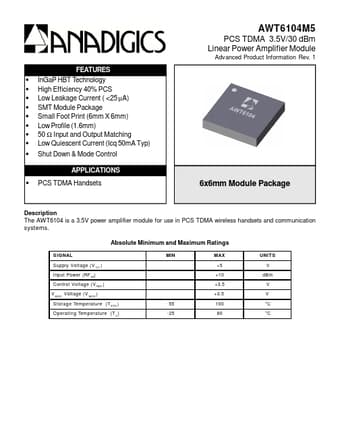

AWT6104M5 Datasheet, Module, ANADIGICS Inc

AWT6104M5 Features

• Module
• InGaP HBT Technology High Efficiency 40% PCS Low Leakage Current ( <25 µA) SMT Module Package S

PDF File Details

Part number:

AWT6104M5

Manufacturer:

ANADIGICS Inc

File Size:

147.98kb

Download:

📄 Datasheet

Description:

Pcs tdma 3.5v/30 dbm linear power amplifier module. The AWT6104 is a 3.5V power amplifier module for use in PCS TDMA wireless handsets and communication systems. Absolute Minimum and Ma

AWT6104M5 Application

• Applications
• PCS TDMA Handsets 6x6mm Module Package Description The AWT6104 is a 3.5V power amplifier module for use in PCS TDMA wireles
