AWT6108

Quad Band Power Amplifier

ANADIGICS

AWT6108 Features

* PRELIMINARY DATA SHEET - Rev 1.0 InGaP HBT Technology Integrated Power Control (CMOS) Quad Band Applications +35 dBm GSM Output Power at 3.5 V +33 dBm DCS/PCS Output Power at 3.5 V 55% GSM PAE 50% DCS/PCS PAE Small Footprint: 7 x 10mm Low Profile: 1.4mm Power Control Range: >

AWT6108 General Description

This quad band power amplifier module is designed to support dual, tri and quad band applications. The module includes an integrated power control scheme that facilitates fast and easy production calibration and reduces the number of external components required to complete a power control function.

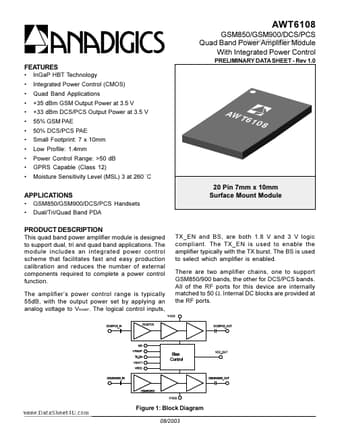

AWT6108 Datasheet (342.47 KB)

AWT6108 Datasheet Preview — Preview of AWT6108 PDF

Datasheet Details

Part number:

AWT6108

Manufacturer:

ANADIGICS

File Size:

342.47 KB

Description:

Quad band power amplifier.
