AWT6107 Datasheet - ANADIGICS Inc

EGSM/DCS Dual Band 3.5V GPRS Power Amplifier Module

AWT6107 Features

* InGaP HBT Technology High Efficiency 55% EGSM High Efficiency 50% DCS Low Leakage Current (5mA) SMT Module Package Small Footprint (9.2mm X 11.6mm) Low Profile (1.55 mm) 50W Input and Output Matching Minimal Number of External C

AWT6107 General Description

The AWT6107 power amplifier module has been optimized for dual band operation (EGSM and DCS1800 bands). The amplifier is suitable for class 10 GPRS (2 TX Slots) handsets and similar communication systems. The module integrates practically all circuitry associated with the power amplifier function in.

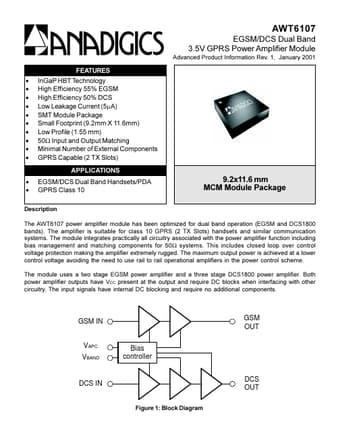

AWT6107 Datasheet (233.78 KB)

AWT6107 Datasheet Preview — Preview of AWT6107 PDF

Datasheet Details

Part number:

AWT6107

Manufacturer:

ANADIGICS Inc

File Size:

233.78 KB

Description:

Egsm/dcs dual band 3.5v gprs power amplifier module.
