ALT6701 Datasheet, Pam, ANADIGICS

✔ ALT6701 Features

CDMA/EVDO, WCDMA/HSPA and LTE Compliant
4th Generation HELPTM technology
High Efficiency (R99 waveform):
41 % @ POUT = +28.4 dBm
31 % @ POUT = +17 dBm

✔ ALT6701 Application

Band 1 WCDMA/HSPA Wireless Devices
Band 1 LTE Wireless Devices
Band Class 6 CDMA/EVDO Wireless Devi

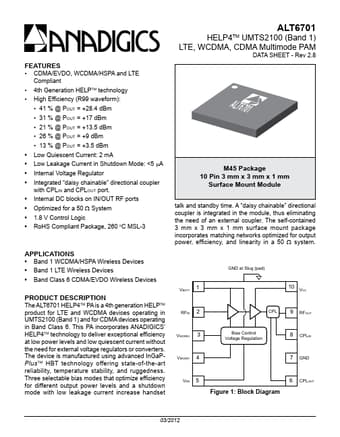

PDF File Details

ANADIGICS manufacturer logo

Part number:

ALT6701

Manufacturer:

ANADIGICS

File Size:

575.96kb

Download:

📄 Datasheet

Description:

Multimode pam. The ALT6701 HELP4TM PA is a 4th generation HELPTM product for LTE and WCDMA devices operating in UMTS2100 (Band 1) and for CDMA devic
