ALT6705 Datasheet, Pam, ANADIGICS

ALT6705 Features

  • Pam
  • Multimode (LTE, HSPA, EV-DO Compliant)
  • 4th Generation HELPTM technology
  • High Efficiency (R99 waveform):
  • 40 % @ POUT = +28.4 dBm
  • <

PDF File Details

Part number:

ALT6705

Manufacturer:

ANADIGICS

File Size:

529.34kb

Download:

📄 Datasheet

Description:

Multimode pam. The ALT6705 HELP4TM PA is the 4th generation HELPTM product for LTE and WCDMA devices operating in UMTS800 (Bands 5, 6, 18,19, & 26)

Datasheet Preview: ALT6705 📥 Download PDF (529.34kb)

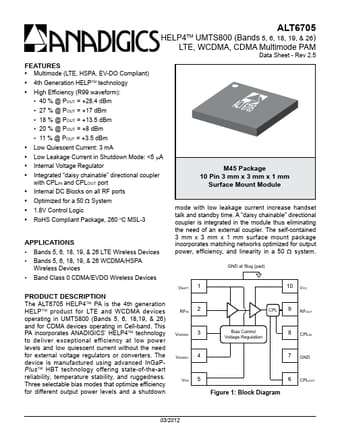

Page 2 of ALT6705 Page 3 of ALT6705

ALT6705 Application

  • Applications
  • Bands 5, 6, 18, 19, & 26 LTE Wireless Devices mode with low leakage current increase handset talk and standby time. A “dais
