ALT6708 Linear PAM

ALT6708 Description

.
The ALT6708 HELP4TM PA is a 4th generation HELPTM product for LTE and WCDMA devices operating in UMTS900 (Band 8) .

ALT6708 Features

* HSPA, LTE Compliant
* 4th Generation HELPTM technology
* High Efficiency (R99 waveform):
* 40 % @ POUT = +28.8 dBm
* 26 % @ POUT = +17 dBm
* 17 % @ POUT = +13.5 dBm
* 18 % @ POUT = +7.5 dBm
* 10 % @ POUT = +3.5

ALT6708 Applications

* Band 8 LTE Wireless Devices
* Band 8 (EGSM) WCDMA/HSPA Wireless Devices ALT6708 HELP4TM UMTS900 (Band 8) WCDMA, LTE Linear PAM Data Sheet - Rev 2.3 ALT6708 M45 Package 10 Pin 3 mm x 3 mm x 1 mm Surface Mount Module integrated in the module, thus eliminating the need of an extern

📥 Download Datasheet

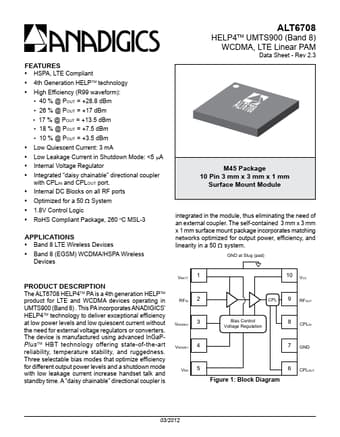

Preview of ALT6708 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ALT6708
Manufacturer
ANADIGICS
File Size
528.46 KB
Datasheet
ALT6708-ANADIGICS.pdf
Description
Linear PAM
