AWL9224 Datasheet, Amplifier, ANADIGICS

✔ AWL9224 Features

3% EVM @ POUT = +20 dBm with IEEE 802.11g 64 QAM Modulation at 54 Mbps -38 dBc ACPR 1st Sidelobe at +23 dBm with IEEE 802.11b at 1, 2, 5.5, 11 Mbps -54

✔ AWL9224 Application

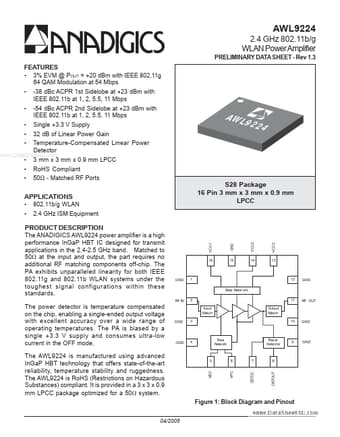

802.11b/g WLAN 2.4 GHz ISM Equipment S28 Package 16 Pin 3 mm x 3 mm x 0.9 mm LPCC PRODUCT DESCRIPTION

PDF File Details

ANADIGICS manufacturer logo

Part number:

AWL9224

Manufacturer:

ANADIGICS

File Size:

299.69kb

Download:

📄 Datasheet

Description:

2.4 ghz 802.11b/g wlan power amplifier. The ANADIGICS AWL9224 power amplifier is a high performance InGaP HBT IC designed for transmit applications in the 2.4-2.5 GHz band.
