AWL9565HS41P7 802.11a/n Power Amplifier & Switch

The ANADIGICS AWL9565 is a high performance InGaP HBT FEIC that incorporates a 5 GHz power amplifier, 5 GHz SP2T RF Switch and 2 GHz SP3T RF switch. The FEIC is designed for WLAN transmit and receive applications in the 2.412-2.484 and 5.15-5.85 GHz bands. Matched to 50 Ohms and DC blocked at all RF.

AWL9565HS41P7 Features

* 3% Dynamic EVM @ Pout = +18 dBm with IEEE 802.11a 64 QAM OFDM at 54 Mbps 30 dB of Linear Power Gain Single +3.3 V Nominal Supply SP3T RF Switch w/Bluetooth

AWL9565-ANADIGICS.pdf

This datasheet PDF includes multiple part numbers: AWL9565HS41P7, AWL9565. Please refer to the document for exact specifications by model.

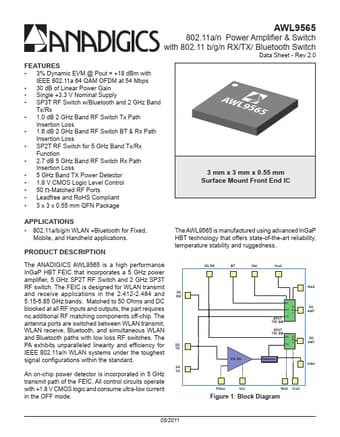

AWL9565HS41P7 Datasheet Preview Page 2 AWL9565HS41P7 Datasheet Preview Page 3

Datasheet Details

Part number:

AWL9565HS41P7, AWL9565

Manufacturer:

ANADIGICS

File Size:

2.60 MB

Description:

802.11a/n power amplifier & switch.

Note:

This datasheet PDF includes multiple part numbers: AWL9565HS41P7, AWL9565.
Please refer to the document for exact specifications by model.
