AWT6133 Datasheet - ANADIGICS

PCS/CDMA 3.5V/29dBm Linear Power Amplifier Module

AWT6133 Features

* InGaP HBT Technology High Efficiency: 38% Low Quiescent Current: 50 mA Low Leakage Current in Shutdown Mode:

AWT6133 General Description

The AWT6133 meets the increasing demands for higher efficiency and linearity in CDMA 1XRTT handsets. The PA module is optimized for VREF = +2.85 V, a requirement for compatibility with the Qualcomm® 6000 chipset. The device is manufactured on an advanced InGaP HBT MMIC technology offering state-of-t.

AWT6133 Datasheet (293.42 KB)

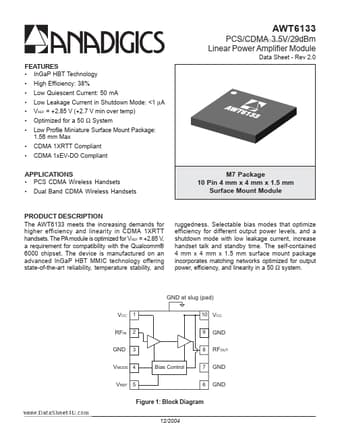

AWT6133 Datasheet Preview — Preview of AWT6133 PDF

Datasheet Details

Part number:

AWT6133

Manufacturer:

ANADIGICS

File Size:

293.42 KB

Description:

Pcs/cdma 3.5v/29dbm linear power amplifier module.
