DFR1B-Q1, DFR1A-Q1 - 1.0A Surface Mount Fast Recovery Rectifier

DFR1B-Q1 Description

DFR1A-Q1 THRU DFR1M-Q1 Recovery Rectifiers-50-1000V 1.0A Surface Mount Fast .

DFR1B-Q1 Applications

* Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Compliant to RoHS Directive 2011/65/EU Compliant to Halogen-free Suffix "-Q1" for AEC-Q101 1.8± 0.2 Package outline SOD-123 Cathode Band

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DFR1B-Q1, DFR1A-Q1. Please refer to the document for exact specifications by model.

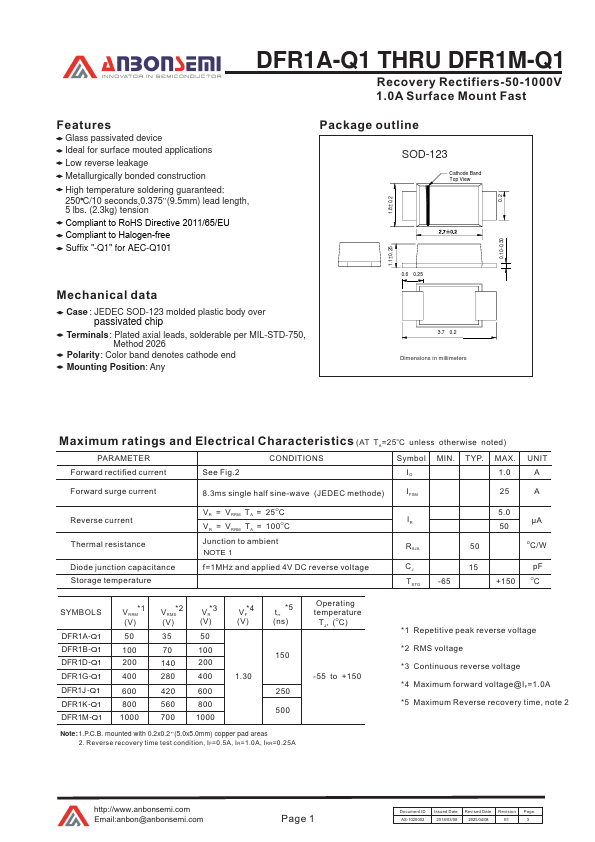

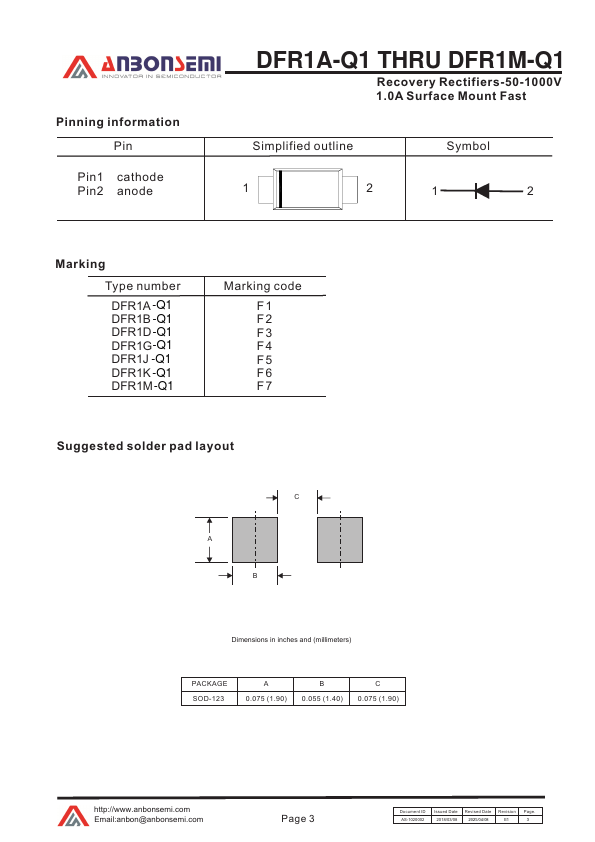

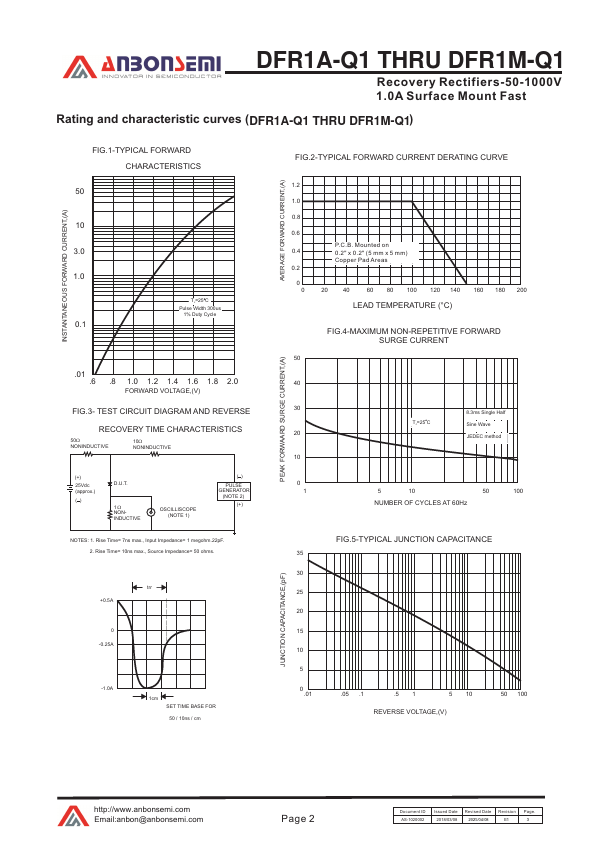

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DFR1B-Q1, DFR1A-Q1
Manufacturer
ANBON
File Size
658.85 KB
Datasheet
DFR1A-Q1-ANBON.pdf
Description
1.0A Surface Mount Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: DFR1B-Q1, DFR1A-Q1.
Please refer to the document for exact specifications by model.
