DFR1J-Q1 - 1.0A Surface Mount Fast Recovery Rectifier

This page provides the datasheet information for the DFR1J-Q1, a member of the DFR1A-Q1 1.0A Surface Mount Fast Recovery Rectifier family.

Datasheet Summary

Features

  • Glass passivated device Ideal for surface mouted.

📥 Download Datasheet

Datasheet preview – DFR1J-Q1

Datasheet Details

Part number DFR1J-Q1
Manufacturer ANBON
File Size 658.85 KB
Description 1.0A Surface Mount Fast Recovery Rectifier
Datasheet download datasheet DFR1J-Q1 Datasheet
Additional preview pages of the DFR1J-Q1 datasheet.

📁 Similar Datasheet

  • DFR1J - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • DFR1J - 1A SURFACE MOUNT FAST RECOVERY RECTIFIER (Formosa MS)
  • DFR1J - SUFACE MOUNT FAST RECOVERY RECTIFIER (MDD)
  • DFR10A20CT - 10 Ampere Insulated Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
  • DFR10A40CT - 10 Ampere Insulated Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
  • DFR10A60CT - 10 Ampere Insulated Common Cathode Fast Recovery Half Bridge Rectifiers (Thinki Semiconductor)
  • DFR1A - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • DFR1A - 1A SURFACE MOUNT FAST RECOVERY RECTIFIER (Formosa MS)
  • DFR1A - SUFACE MOUNT FAST RECOVERY RECTIFIER (MDD)
  • DFR1B - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
Other Datasheets by ANBON
  • DFR1A-Q1 - 1.0A Surface Mount Fast Recovery Rectifier
  • DFR1B-Q1 - 1.0A Surface Mount Fast Recovery Rectifier
  • DFR1D-Q1 - 1.0A Surface Mount Fast Recovery Rectifier
  • DFR1G-Q1 - 1.0A Surface Mount Fast Recovery Rectifier
  • DFR1K-Q1 - 1.0A Surface Mount Fast Recovery Rectifier
  • DFR1M-Q1 - 1.0A Surface Mount Fast Recovery Rectifier

Full PDF Text Transcription

Click to expand full text

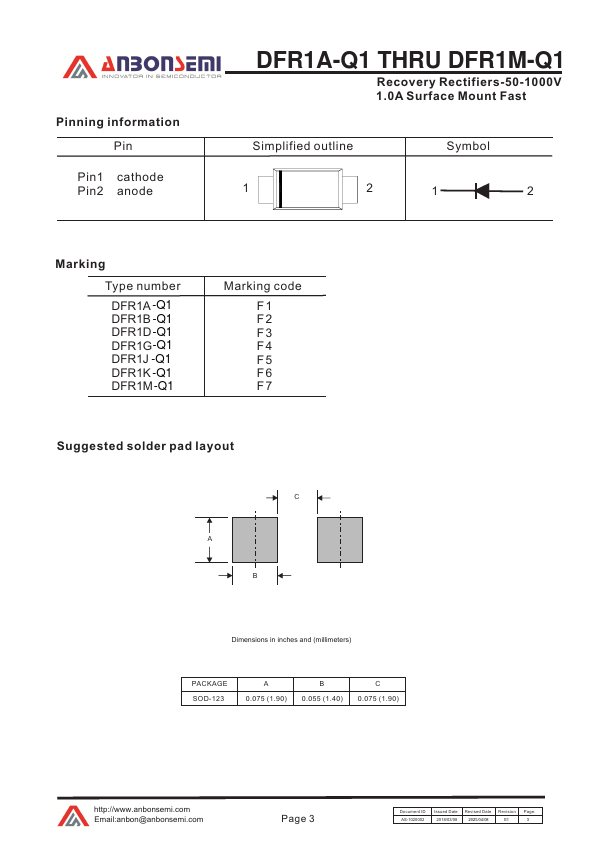

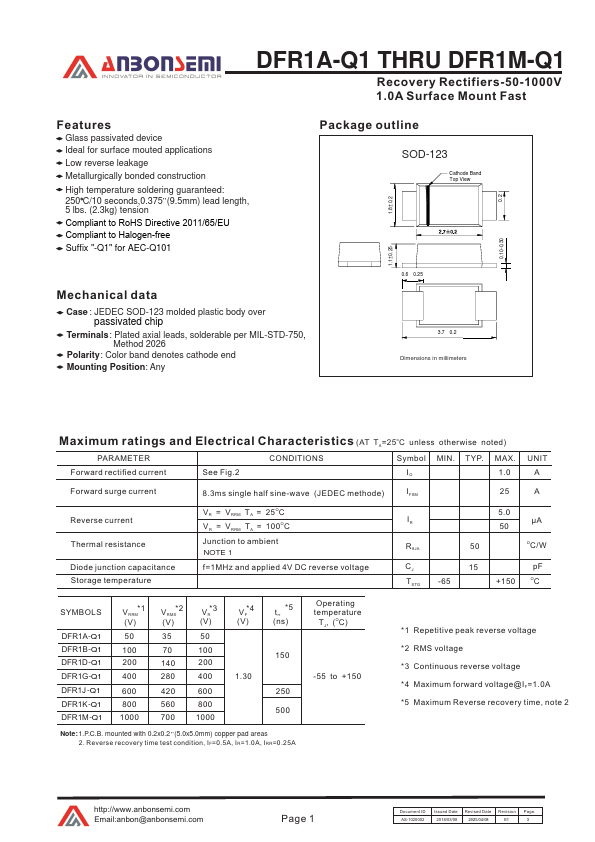

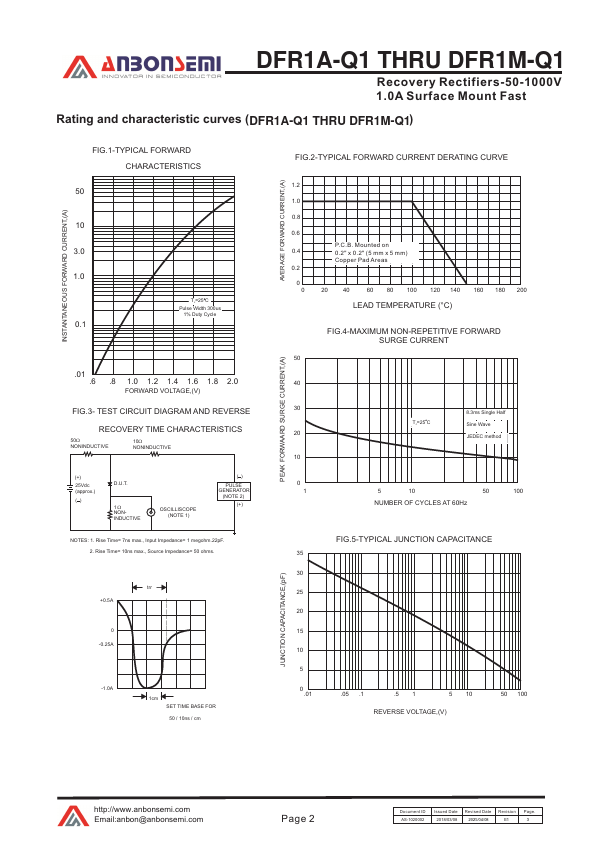

DFR1A-Q1 THRU DFR1M-Q1 Recovery Rectifiers-50-1000V 1.0A Surface Mount Fast Features Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Compliant to RoHS Directive 2011/65/EU Compliant to Halogen-free Suffix "-Q1" for AEC-Q101 1.8± 0.2 Package outline SOD-123 Cathode Band Top View 0.2 0.10-0.30 1.1± 0.25 Mechanical data Case : JEDEC SOD-123 molded plastic body over passivated chip Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any 0.60.25 3.70.
