DFR1B, DFR1A - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES

DFR1B Description

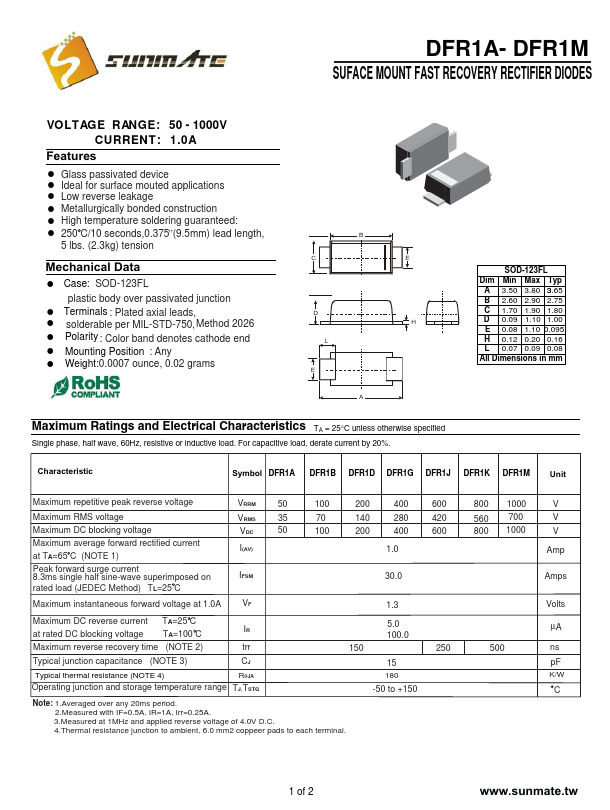

DFR1A- DFR1M SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0A .

DFR1B Applications

* ! Low reverse leakage ! Metallurgically bonded construction ! High temperature soldering guaranteed: ! 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: SOD-123FL plastic body over passivated junction ! Terminals : Plated axial leads, ! solderable per MIL-STD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DFR1B, DFR1A. Please refer to the document for exact specifications by model.

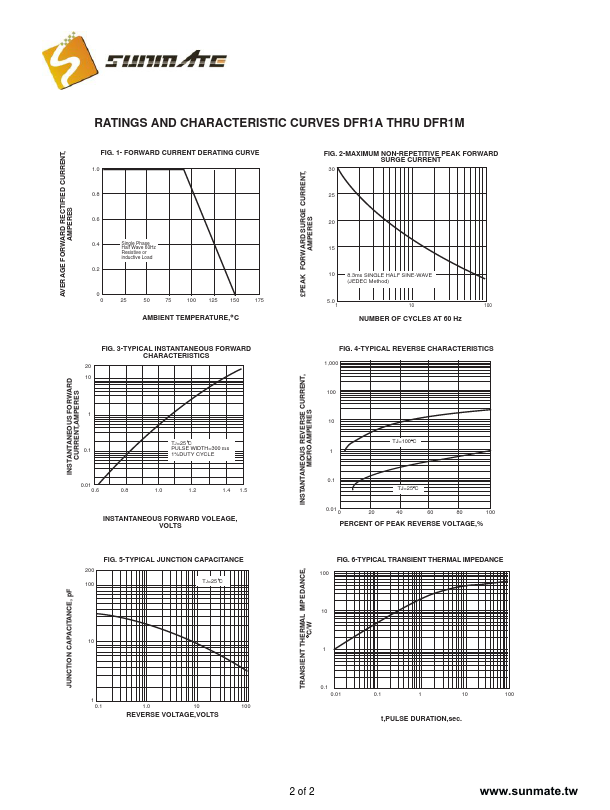

datasheet Preview Page 2

Datasheet Details

Part number
DFR1B, DFR1A
Manufacturer
Sunmate
File Size
119.38 KB
Datasheet
DFR1A-Sunmate.pdf
Description
SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: DFR1B, DFR1A.
Please refer to the document for exact specifications by model.
