SMZ1110A - Surface Mount Zener Diodes

The SMZ1110A by ANOVA is a Surface Mount Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	SMZ1110A
Manufacturer	ANOVA
File Size	199.66 KB
Description	Surface Mount Zener Diodes
Datasheet	SMZ1110A-ANOVA.pdf

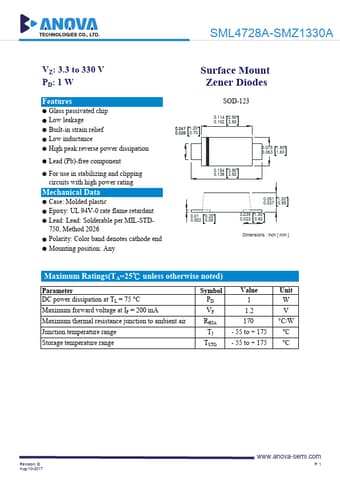

Additional preview pages of the SMZ1110A datasheet.

Glass passivated chip.
Low leakage.
Built-in strain relief.
Low inductance.
High peak reverse power dissipation.
Lead (Pb)-free component.
For use in stabilizing and clipping circuits with high power rating Mechanical Data.
Case: Molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Lead: Lead: Solderable per MIL-STD- 750, Method 2026.
Polarity: Color band denotes cathode end.
Mounting position: Any Surface Mount Zener Diodes SOD-123.
