APC209 - 4 Channel Rail to Rail Output Operating Amplifier

Datasheet Summary

Description

The APC209 consists of four independent, high gain and high output driver current, CMOS operating amplifier,combining rail to rail output range with large output current.

It provides a low input bias current 2pA.

Features

Operating Voltage: VDD : 2.4V~6.0V.
Low Input Current.
Rail to Rail Output Swing.
Push-Pull Output Driving.
High Output Current Drive :100mA.
Wide Bandwidth: 7MHz.
Fast Slew Rate 5V/ms.
Available in 14 pin TSSOP Package.
Lead Free and Green Devices Available (RoHS Compliant).

Datasheet Details

Part number	APC209
Manufacturer	ANPEC
File Size	187.20 KB
Description	4 Channel Rail to Rail Output Operating Amplifier
Datasheet	APC209 Datasheet

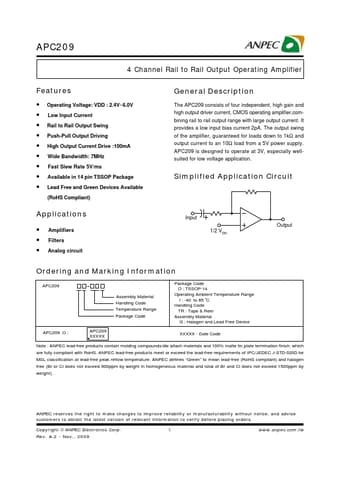

Additional preview pages of the APC209 datasheet.

📁 Similar Datasheet

APC20-xxx - Axial Power Chokes (Allied Components)

APC14103E - ISDN Line Interface (Bel Fuse)

APC18T04-9 - DC-DC / Non-Isolated (Emerson)

APC18T04-9J - DC-DC / Non-Isolated (Emerson)

APC18T04-9JL - DC-DC / Non-Isolated (Emerson)

APC18T04-9L - DC-DC / Non-Isolated (Emerson)

APC18T12-9 - DC-DC / Non-Isolated (Emerson)

APC18T12-9J - DC-DC / Non-Isolated (Emerson)

APC18T12-9JL - DC-DC / Non-Isolated (Emerson)

APC18T12-9L - DC-DC / Non-Isolated (Emerson)

Full PDF Text Transcription

Click to expand full text

APC209 4 Channel Rail to Rail Output Operating Amplifier Features • Operating Voltage: VDD : 2.4V~6.0V • Low Input Current • Rail to Rail Output Swing • Push-Pull Output Driving • High Output Current Drive :100mA • Wide Bandwidth: 7MHz • Fast Slew Rate 5V/ms • Available in 14 pin TSSOP Package • Lead Free and Green Devices Available (RoHS Compliant) Applications • Amplifiers • Filters • Analog circuit General Description The APC209 consists of four independent, high gain and high output driver current, CMOS operating amplifier,combining rail to rail output range with large output current. It provides a low input bias current 2pA. The output swing of the amplifier, guaranteed for loads down to 1kΩ and output current to an 10Ω load from a 5V power supply.
