APC208 Rail to Rail Output CMOS Single Operating Amplifier

The APC206/207/208 brings performance and enconomy with high gain, CMOS operating amplifier, combining rail to rail output range with large output current. It provides a low input bias current 2pA. The output swing of the amplifier, guaranteed for loads down to 1kΩ and output current to an 10Ω load .

APC208 Features

* Operating Voltage Single Supply, 3V to 6V

* Low Input Current, 2pA

* Rail to Rail Output Swing

* Push-Pull Output Driving

* High Output Current Drive, 310mA

* Bandwidth:7MHz

* Wide Temperature Range

* Available in the SOT-23-5 Package

APC206-ANPEC.pdf

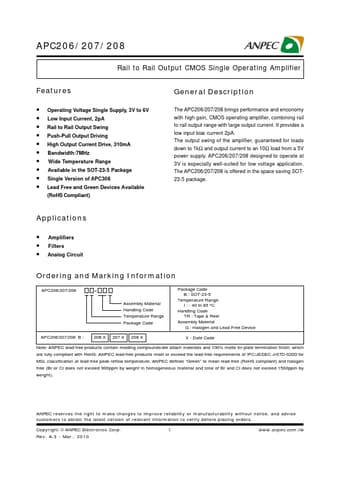

APC208 Datasheet Preview — This datasheet PDF includes multiple part numbers: APC208, APC206. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

APC208, APC206

Manufacturer:

ANPEC

File Size:

178.12 KB

Description:

Rail to rail output cmos single operating amplifier.

Note:

This datasheet PDF includes multiple part numbers: APC208, APC206.
Please refer to the document for exact specifications by model.
