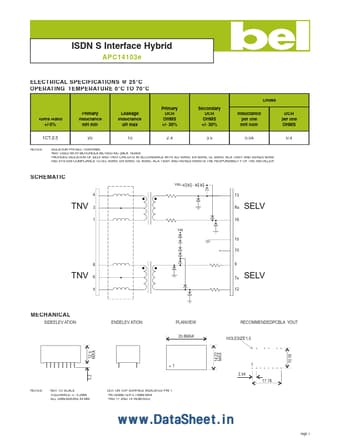

ISDN S Interface Hybrid
APC14103e
ELECTRICAL SPECIFICATIONS @ 25°C OPERATING TEMPERATURE 0°C TO 70°C
Choke Primary Inductance mH min 20 Leakage Inductance uH max 10 Primary DCR OHMS +/- 30% 2.4 Secondary DCR OHMS +/- 30% 3.5 Inductance per line mH nom 0.04 DCR per line OHMS 0.4
Turns Ratio +/-5% 1CT:2.5
NOTES:
ISOLATION PRI:SEC 1500VRMS PART USED WITH MOTOROLA MC145574IC (MCK 143454 PROVIDES ISOLATION OF SELV AND TNV3 CIRCUITS IN ACCORDANCE WITH IEC 60950, EN 60950, UL 60950, ACA TS001 AND AS/NZS 60950 END SYSTEM COMPLIANCE TO IEC 60950, EN 60950, UL 60950, ACA TS001 AND AS/NZS 60950 IS THE RESPONSIBILITY OF THE INSTALLER
SCHEMATIC
Vdd
4
13 Rx 16
Vdd
TNV
3 1
SELV
15 10
8
9 Tx 12
TNV
6 5
SELV
MECHANICAL
SIDEELEV ATION ENDELEV ATION PLANVIEW
25.
