APC77122RC - Integrated CO Filter/Hybrid Solution VDSL/10BaseS

Datasheet Summary

Description

www.DataSheet4U.com VDSL Splitter/ Hybrid Receive HPF Transmit BPF NOTES: Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 12 dB Stopband Frequency 200 kHz Attenuation min 40 dB Impedance 120 ohms 4.1 MHz to 7.9 MHz 0.8 dB 12 dB 900 kHz to 3.0 MHz 30 dB

Bel Fuse

📥 Download Datasheet

Datasheet Details

Part number	APC77122RC
Manufacturer	Bel Fuse
File Size	121.79 KB
Description	Integrated CO Filter/Hybrid Solution VDSL/10BaseS
Datasheet	APC77122RC Datasheet
Additional preview pages of the APC77122RC datasheet.

📁 Similar Datasheet

APC18T04-9 - DC-DC / Non-Isolated (Emerson)
APC18T04-9J - DC-DC / Non-Isolated (Emerson)
APC18T04-9JL - DC-DC / Non-Isolated (Emerson)
APC18T04-9L - DC-DC / Non-Isolated (Emerson)
APC18T12-9 - DC-DC / Non-Isolated (Emerson)
APC18T12-9J - DC-DC / Non-Isolated (Emerson)
APC18T12-9JL - DC-DC / Non-Isolated (Emerson)
APC18T12-9L - DC-DC / Non-Isolated (Emerson)
APC20-xxx - Axial Power Chokes (Allied Components)
APC206 - Rail to Rail Output CMOS Single Operating Amplifier (ANPEC)

Other Datasheets by Bel Fuse

APC77122 - Integrated CO Filter/Hybrid Solution VDSL/10BaseS
APC77124 - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
APC77124RC - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
APC77127 - VDSL Hybrid Module
APC77128 - VDSL Hybrid Module
APC77129 - VDSL Hybrid Module
APC77101 - POTS/ISDN Splitter
APC77115 - ISDN/Smartphone Splitter

Full PDF Text Transcription

Click to expand full text

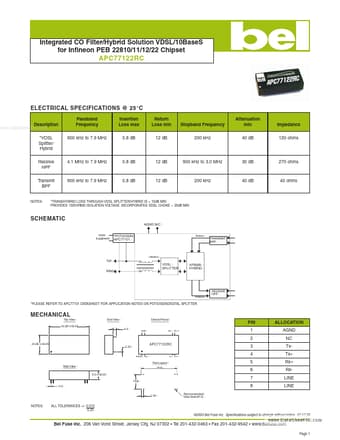

Integrated CO Filter/Hybrid Solution VDSL/10BaseS for Infineon PEB 22810/11/12/22 Chipset APC77122RC ELECTRICAL SPECIFICATIONS @ 25°C Description www.DataSheet4U.com *VDSL Splitter/ Hybrid Receive HPF Transmit BPF NOTES: Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 12 dB Stopband Frequency 200 kHz Attenuation min 40 dB Impedance 120 ohms 4.1 MHz to 7.9 MHz 0.8 dB 12 dB 900 kHz to 3.0 MHz 30 dB 270 ohms 900 kHz to 7.9 MHz 0.8 dB 12 dB 200 kHz 40 dB 40 ohms *TRANSHYBRID LOSS THROUGH VDSL SPLITTER/HYBRID IS > 15dB MIN PROVIDES 1500VRMS ISOLATION VOLTAGE.
