APC77127 - VDSL Hybrid Module

Product Overview

Bel Fuse

Datasheet Details

Part number	APC77127
Manufacturer	Bel Fuse
File Size	204.40 KB
Description	VDSL Hybrid Module
Datasheet	APC77127 Datasheet
Additional preview pages of the APC77127 datasheet.

Product details

Description

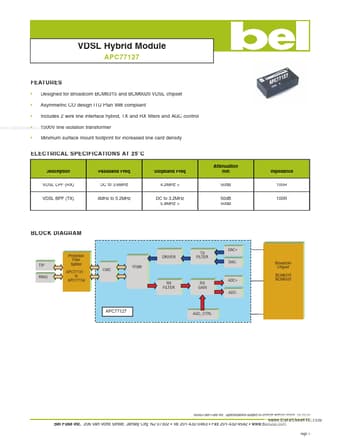

VDSL LPF (RX) VDSL BPF (TX) Passband Freq DC to 3.6MHz 4MHz to 5.2MHz Stopband Freq 4.2MHz > DC to 3.2MHz 5.8MHz > Attenuation min 50dB 50dB 50dB Impedance 100R 100R BLOCK DIAGRAM DAC+ DACCMC TFMR TIP RING Protection Filter Splitter APC77131 to APC77134 TXLINE DRIVER TX FILTER Broadcom Chipset BCM6315 BCM6020 RX FILTER RX GAIN ADC+ ADC- APC77127 AGC_CTRL ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ

Features

Designed for Broadcom BCM6315 and BCM6020 VDSL chipset Asymmetric CO design ITU Plan 998 compliant Includes 2 wire line interface hybrid, TX and RX filters and AGC control.
1500V line isolation transformer www. DataSheet4U. com.
Minimum surface mount footprint for increased line card density.
