APC77124 - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS

Product Overview

Bel Fuse

Datasheet Details

Part number	APC77124
Manufacturer	Bel Fuse
File Size	122.08 KB
Description	Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
Datasheet	APC77124 Datasheet
Additional preview pages of the APC77124 datasheet.

Product details

Description

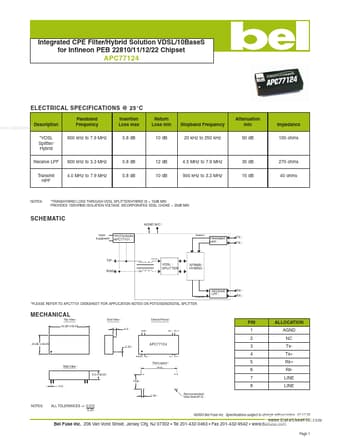

www.DataSheet4U.com VDSL Splitter/ Hybrid Receive LPF Transmit HPF Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 10 dB Stopband Frequency 20 kHz to 250 kHz Attenuation min 50 dB Impedance 100 ohms 900 kHz to 3.3 MHz 4.0 MHz to 7.9 MHz 0.8 dB 0.8 dB 12 dB 10 dB 4.5 MHz to 7.9 MHz 900 kHz to 3.3 MHz 35 dB 15 dB 270 ohms 40 ohms NOTES: TRANSHYBRID LOSS THROUGH VDSL SPLITTER/HYBRID IS > 15dB MIN PROVIDES 1500VRMS ISOLATION VOLTAGE.
