APC77124RC - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS

Product Overview

Bel Fuse

Datasheet Details

Part number	APC77124RC
Manufacturer	Bel Fuse
File Size	121.57 KB
Description	Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
Datasheet	APC77124RC Datasheet

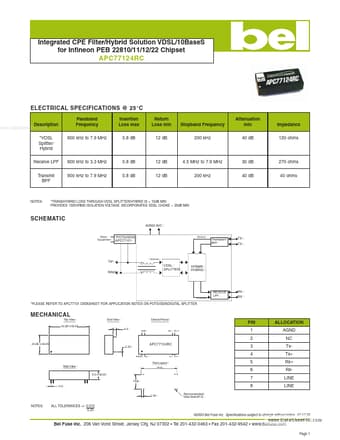

Additional preview pages of the APC77124RC datasheet.

Product details

Description

www.DataSheet4U.com VDSL Splitter/ Hybrid Receive LPF Transmit BPF Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 12 dB Stopband Frequency 200 kHz Attenuation min 40 dB Impedance 120 ohms 900 kHz to 3.3 MHz 900 kHz to 7.9 MHz 0.8 dB 0.8 dB 12 dB 12 dB 4.5 MHz to 7.9 MHz 200 kHz 30 dB 40 dB 270 ohms 40 ohms NOTES: TRANSHYBRID LOSS THROUGH VDSL SPLITTER/HYBRID IS > 15dB MIN PROVIDES 1500VRMS ISOLATION VOLTAGE.
