APC77128 - VDSL Hybrid Module

Product Overview

Bel Fuse

Datasheet Details

Part number	APC77128
Manufacturer	Bel Fuse
File Size	186.61 KB
Description	VDSL Hybrid Module
Datasheet	APC77128 Datasheet

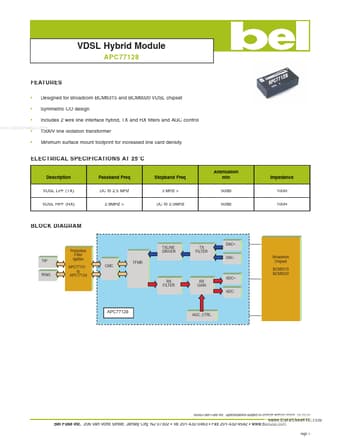

Additional preview pages of the APC77128 datasheet.

Product details

Description

VDSL LPF (TX) VDSL HPF (RX) Passband Freq DC to 2.5 MHz 2.8MHz > Stopband Freq 3 MHz > DC to 2.5MHz Attenuation min 50dB 50dB Impedance 100R 100R BLOCK DIAGRAM DAC+ Broadcom Chipset BCM6315 BCM6020 RX FILTER RX GAIN ADC+ TIP Protection Filter Splitter APC77131 to APC77134 CMC TXLINE DRIVER TFMR TX FILTER DAC- RING ADC- APC77128 AGC_CTRL ©2003 Bel Fuse Inc.Specifications subject to change without notice.05.20.03 Bel Fuse Inc.206 Van Vorst Street, Jersey City, NJ 07302 Tel

Features

Designed for Broadcom BCM6315 and BCM6020 VDSL chipset Symmetric CO design Includes 2 wire line interface hybrid, TX and RX filters and AGC control 1500V line isolation transformer Minimum surface mount footprint for increased line card density www. DataSheet4U. com.
