APC77122 - Integrated CO Filter/Hybrid Solution VDSL/10BaseS

Datasheet Summary

Description

www.DataSheet4U.com VDSL Splitter/ Hybrid Receive HPF Transmit LPF NOTES: Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 10 dB Stopband Frequency 20 kHz to 250 kHz Attenuation min 50 dB Impedance 100 ohms 4.0 MHz to 7.9 MHz 0.8 dB 12 dB 900 kHz to 3.3

📥 Download Datasheet

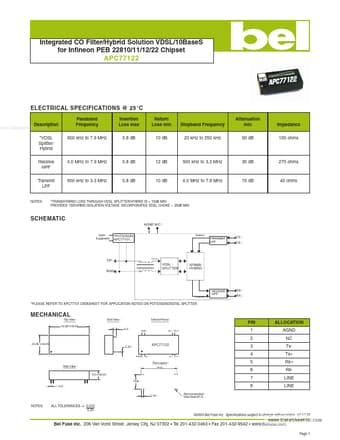

Datasheet preview – APC77122

Datasheet Details

Part number APC77122
Manufacturer Bel Fuse
File Size 121.58 KB
Description Integrated CO Filter/Hybrid Solution VDSL/10BaseS
Datasheet download datasheet APC77122 Datasheet
Additional preview pages of the APC77122 datasheet.

📁 Similar Datasheet

Other Datasheets by Bel Fuse
  • APC77122RC - Integrated CO Filter/Hybrid Solution VDSL/10BaseS
  • APC77124 - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
  • APC77124RC - Integrated CPE Filter/Hybrid Solution VDSL/10BaseS
  • APC77127 - VDSL Hybrid Module
  • APC77128 - VDSL Hybrid Module
  • APC77129 - VDSL Hybrid Module
  • APC77101 - POTS/ISDN Splitter
  • APC77115 - ISDN/Smartphone Splitter

Full PDF Text Transcription

Click to expand full text
Integrated CO Filter/Hybrid Solution VDSL/10BaseS for Infineon PEB 22810/11/12/22 Chipset APC77122 ELECTRICAL SPECIFICATIONS @ 25°C Description www.DataSheet4U.com *VDSL Splitter/ Hybrid Receive HPF Transmit LPF NOTES: Passband Frequency 900 kHz to 7.9 MHz Insertion Loss max 0.8 dB Return Loss min 10 dB Stopband Frequency 20 kHz to 250 kHz Attenuation min 50 dB Impedance 100 ohms 4.0 MHz to 7.9 MHz 0.8 dB 12 dB 900 kHz to 3.3 MHz 35 dB 270 ohms 900 kHz to 3.3 MHz 0.8 dB 10 dB 4.0 MHz to 7.9 MHz 15 dB 40 ohms *TRANSHYBRID LOSS THROUGH VDSL SPLITTER/HYBRID IS > 15dB MIN PROVIDES 1500VRMS ISOLATION VOLTAGE.
